Overview

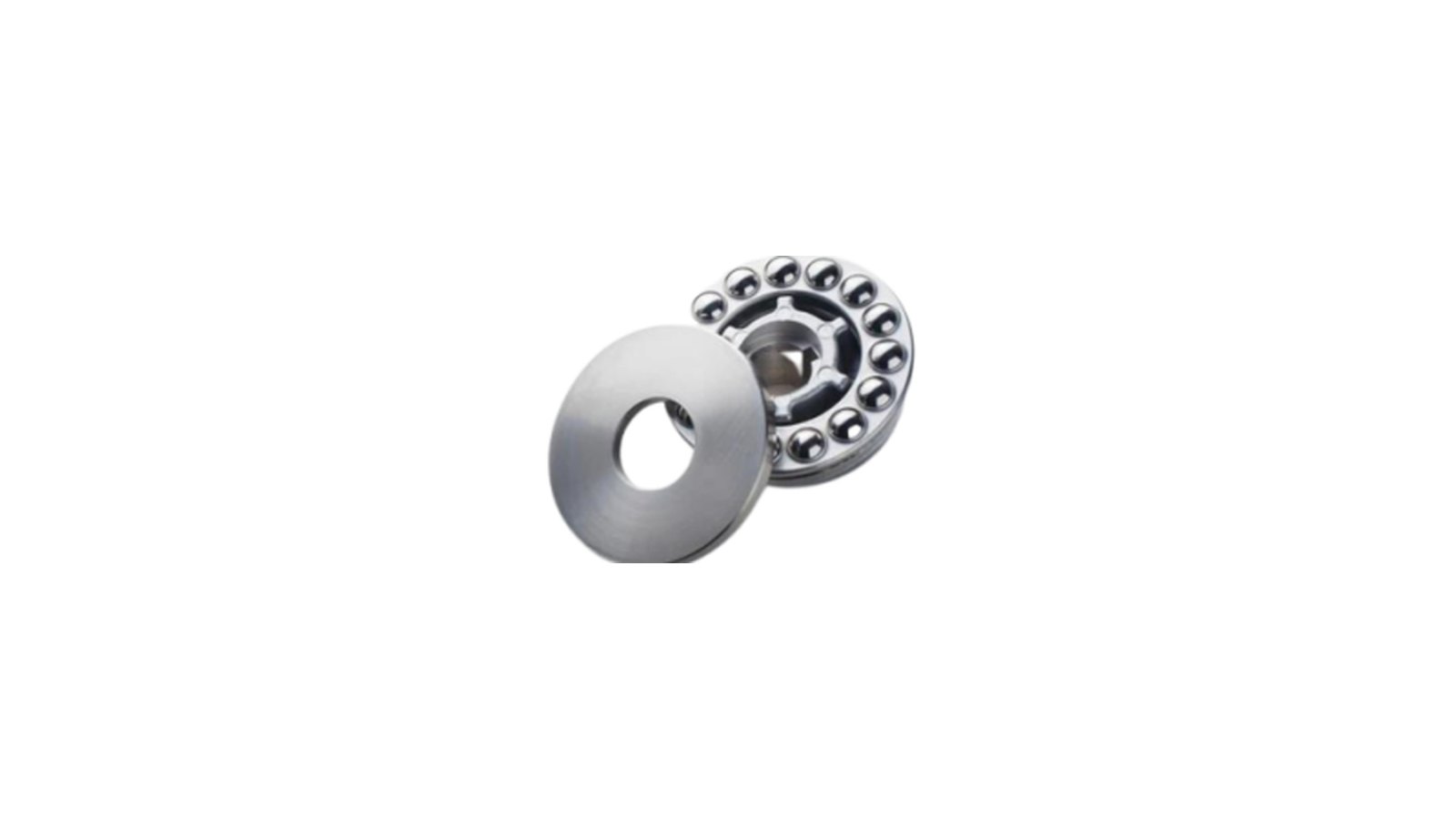

Where the load runs along the shaft rather than across it, a thrust bearing takes it. Thrust ball types handle moderate axial load at moderate speed; spherical roller thrust bearings take very heavy axial load and tolerate misalignment.
What we stock
- 51000 single direction and 52000 double direction thrust ball
- 29000 series spherical roller thrust
- 81000 series cylindrical roller thrust
- Aligning seat washers where required
Variants
- Single and double direction
- Ball and spherical roller types
- Cylindrical roller thrust
- Flat and aligning seats
Applications
Why buy it here
We buy direct from our manufacturing partners, so the price on standard sizes is set at the factory end rather than after three local margins. Stock sits in Dragon Mart 1 twelve hours a day, six days a week, and single pieces are sold on the same terms as cartons.
Not sure which variant you need? Send a photo of the failed part on WhatsApp. The markings on the outer ring — or the bore, outside diameter and width — are enough to identify it.
Areas we serve
Collection from Dragon Mart 1, International City. We supply workshops across Dubai, Sharjah, Ajman, Abu Dhabi and Al Ain, and arrange courier delivery within the UAE.
Questions
Essentially no. It must be paired with a radial bearing that positions the shaft. Loading a thrust bearing radially will destroy it.
It lets the bearing sit square when the housing face is not perfectly perpendicular to the shaft. Without it, load concentrates on one side of the raceway.
Single direction takes thrust one way only. Double direction takes it both ways and is used where the load reverses, such as on a reversing screw.
